Neoline X-Cop S500 radar detector
Discover your new travelling companion Neoline X-COP S500, which offers you the most efficient detection and easiest updates via Wi-Fi. The modular S500 fixed warning system is characterised by its ability to detect K-, M- and Ka-band signals as well as lasers early on, including DAHUA systems and MultaRadar CD and CT. The innovative LNA EXD PLUS low-noise amplifier achieves exceptional sensitivity and precision over mobile measurements.
The concealed installation of the Neoline X-COP S500 enables discreet and elegant integration into any vehicle. Thanks to automatic country switching, the device automatically adapts to region-specific regulations and frequencies, ensuring optimum performance at all times. The global GPS database, which can be updated via Wi-Fi, provides the most accurate and up-to-date information on fixed speed cameras and checkpoints around the world.
WiFi Updates
Unique technology for updating the software and GPS database via a Wi-Fi hotspot on your smartphone. Always up-to-date with a one-click update.
Neolines EXD Plus Modul
Tested and legal to use in many countries. Thanks to its 100% RDD (radar detector detector) invisibility and the removable display, uninvited glances are avoided and discretion is ensured.
The Neoline X-COP S500 is also equipped with a laser receiver for detecting Poliscan Lidar/Laser. An auto-turbo mode dynamically adjusts the device's response in high-speed environments, so you always get the optimum sensitivity. The versatile menu functions offer detailed customisation options, allowing you to adapt settings to your needs and preferences.
EXD Radar- und Lasersensor
The S500 sensor has been developed for accurate and efficient detection of radar signals on various bands and lasers throughout Europe. The S500 sensor excels at detecting the latest radar signals, such as DAHUA systems and MultaRadar CD and CT. In combination with the low-noise LNA EXD PLUS amplifier, it enables higher EURO sensitivities and significantly improves the detection of low-power Radar.
Worldwide GPS Database
The S 500 is equipped with Neoline's unique GPS radar and camera database, which contains the most accurate speed camera data in the world. Thanks to Neoline's regular updates, the system always remains reliable and up-to-date.
Made for Europe
Specially produced for European countries. With 5-language menu navigation in English, German, Spanish, Czech and Polish.
Automatic Configuration
Automatic configuration of settings and signatures when entering another country or region. The S500 automatically sets the best settings for you all by itself.

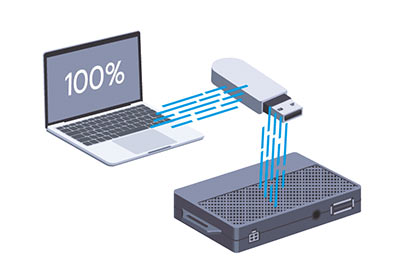

Alternative Updates
Software and GPS database update not only possible via the Wi-Fi hotspot, but also via a USB stick.
Diode for discrete warnings
Three-colour diode for total discretion. Flashes when detecting speed cameras and speed cameras. Can be used without connecting a display to the main HUB.
Mute button for quiet travelling
Invisible mute button that can be mounted near the driver and used for muting.
Sensor protection with options
The S500 is supplied with one sensor as standard and can be expanded with up to three sensors. A laser receiver is also integrated in the sensor, which recognises all lasers in Europe. The sensor supplied also locates the latest multaradar CD/CT radar measurements, which are frequently used in Switzerland, for example.
A total of up to three sensors can be integrated. For example:
1x standard at the front
1x 77 GHz sensor at the front
1x standard rear. Or,
2x standard front sensors (vertical and horizontal)
1x 77 GHz sensor (front or rear) for better detection of additional radar frequencies and measurements.
Features
- High-end system for Germany, Austria and Switzerland
- Modular and freely configurable
- Protects against radar, laser, fixed speed cameras, traffic light speed cameras and section control sections
- Auto setup: automatically configures the system to the region
- More range with LNA EXD PLUS amplifier module
- Recognises K, Ka, M and laser signals
- MULTA module recognises the latest Multaradar
- Wireless updates via Wi-Fi hotspot
- 1 radar laser sensor included in the scope of delivery
- Can be expanded with up to 3 radar antennas (optional)
- Expandable with active laser jammer (optional)
- Alternative software update via USB port
- Signature technology
- Amplifier for laser reception
- Automatic muting
- Mini OLED display for control
- Warning messages acoustic and in German language
- Control element very small and unobtrusive
- Free database updates
- Latest EU database is pre-installed
- Connection via 12V on-board electronics
- Priority for GPS or sensor detection
- Voice prompts (English, German, Spanish, Polish, Czech)
Radar bands
- K-band (23.900 – 24.250 GHz)
- M-band (23.900 – 24.250 GHz)
- KA-band (34.000 – 35.500 GHz)
- Ultra K-band
Laser
- Laser (800 bis 1100 nm)
Technical data
- Operating temperature -10ºC to +60ºC
- Input voltage: DC 12-24 V
- Power consumption: 300-1000 mA
- GPS module: Quectel LC76F Warm start: < 1 min
- GPS cold start: < 5 min
Dimensions::
Display: 7,4 x 3,2 x 0,8 cm
CPU: 15,0 x 7,0 x 2,1 cm
Radar/Laser Sensor: 10,7 x 7,5 x 5 cm
In the Box:
- S500 Cotroller Box
- OLED display
- GPS antenna
- Loudspeaker
- Diode
- Mute button (MUTE)
- Power cable from the main HUB to the vehicle network
- USB OTG cable for USB software update
- Cable plug (3 pieces)
- Display holder with 3M adhesive tape
- 3M plate for display holder (2 pieces)
- Cable fastening element (8 pieces)
- Velcro tape
- Mounting kit and cable for attaching all components
- Instructions in English (and PDF in German)
Neoline X-Cop S500 radar laser detector
Before purchasing, we would like to expressly point out that the possession and/or operation of a Neoline fixed installation radar detector may not be permitted in your country. Please inform yourself about the current legal situation before purchasing or using the device when travelling abroad.
